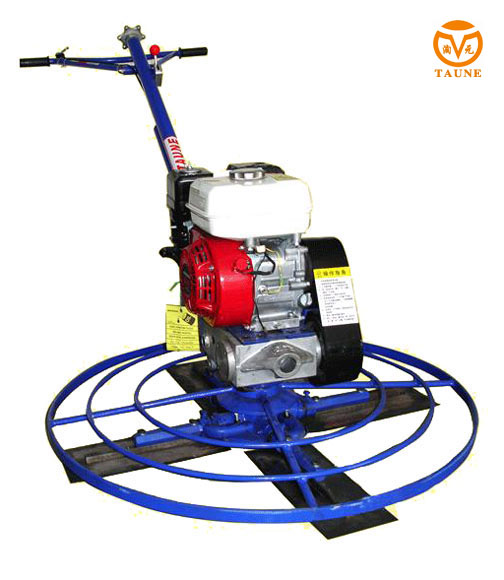

R416 R430

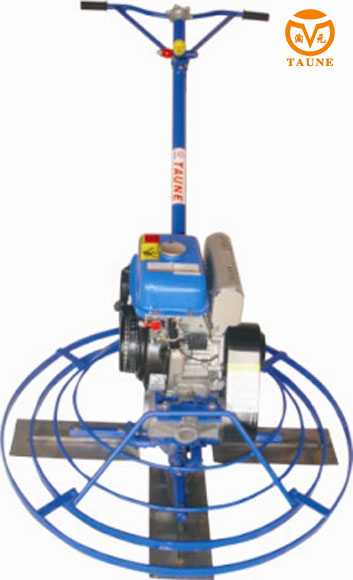

R432 R436 R446
|
Model R416 R432 R432 R436S R436 R446 |
|
Working width（mm）400 800 800 950 950 1100 |
|
Work speed（rpm） 130 155 155 155 55 155 |
|
Dynamic Power（hp） 2.6 5.5 5.5 5.5 5.5 9.0 |
| Size L1000,W400 L1150,W750 L1150,W800 L1150,W950 L1950,W950 L2250,W1150 |
|
（mm） H580 H580 H580 H580 H580 H800 |
|
Work quality（kg） 45 76 78 80 78 98 |
|
Dynamic configuration Longxin (in Shanghai) Honda (Yamaha) |
|
Use of |
Equipment advantages |
|
● Concrete Floor, hardening agent floor (wear-resistant Floor), epoxy mortar floor to the surface, such as pulp, leveling, to light. ● High standards widely used in factories, warehouses, parking lots, roofs and municipal road construction and other places. |
● Unique design to handle the handle can be coordinated from top to bottom; operation more convenient and comfortable. ● Centrifugal clutch ensure that no load easy start, and adjust automatically, reducing maintenance. ● Pitch (Moping adjustable angle) control, at or in hand to adapt to light, Moping applications. ● Low center of gravity design, equipment operation more balanced. ● The emergency shutdown switch equipment in case of emergency rapid-stopping, and ensure safety of personnel and equipment. ● Leaves of the same diameter and shields to ensure that the construction of the wall corners little or no (R416, R430, R436). ● To the design to ensure that the construction of the wall is not damaged. Leaves of the same diameter and shields to ensure that the construction of the wall corners little or no (R416, R430, R436). ● The unique combination of rack, will be convenient and efficient two-Shoufu fuselage assembled into a driving machines (reprovisioning of just one start). Minimize investment, improve efficiency. |
 |
